BTER End molendinum Shank

Unus Sinensium fabricator BTER End Molendinum Shank, praestantem qualitatem in pretio competitive offerens, est YueLi. Libenter adepto in tactu.

Mitte Inquisitionem

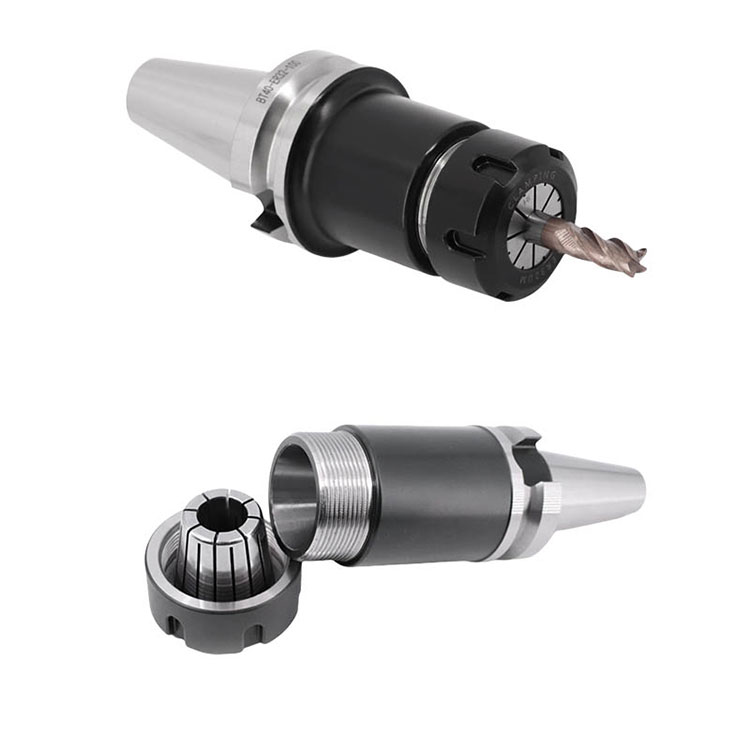

depictio producti

BT/ER finis molendini scapus

Ut unus professionalis princeps qualitas BTER End Molendinum Shank opificem, certificare potes ut emere BTER End Molendinum Shank ex YueLi et tibi optimam post venditionem servitii et partus opportune offeremus.
BT30/40/50ER

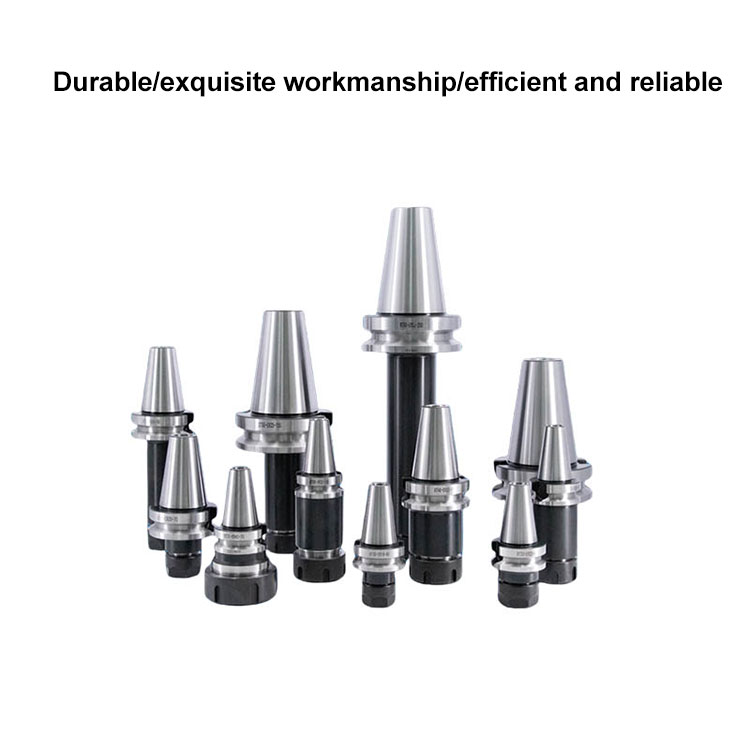

Dura / exquisita opera / efficiens et certa

Alta frequentia exstingui subtilitatem specificationum magis durabilem completam

Product information

Product: NT-ER collet possessor

Specification: BT30/40/50

Exemplar : ER11/16/20/25/32/40

Materia: 40Cr

Firmum interna et externa corona

Instrumentum manubrium semel clamping, altae concentricis, altae vires post processus calidi et caliditas curationis, cum quodam gradu flexibilitatis et plasticitatis.

Magna cura et vetustate

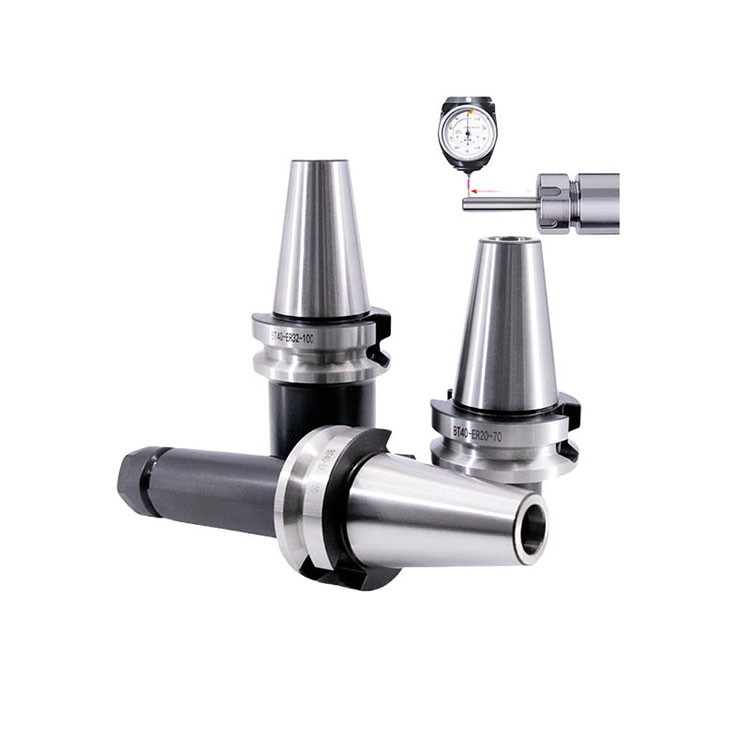

Interior cavum summus praecisio stridor, altiore consummatio apta est instrumenti instrumenti ad exquisitas machinae processus requisita, accurate pulsata <0.003

Post explosione-probatio facilis densis

Stamina producta cum requisitis ad signa nationalia, inspectiones regulares stamina qualificata nitida et glabra, dentes sine lappa, productionem technologiam formant.

01 Seismic resistentia inflexio

Usus chalybis GENERALIS, haud facilis est deformatio ad stabilitatem accurationem praestandam

02 Vitae expectationem auge

Provectus vacuum fornacem exstinguientem potest cognoscere carbonitriding, duritiem emendare et vitam instrumenti vectis augere

03 Subtilitas stabilitas

Exquisita doctrina alta concentricitas, effectus bonus processus, efficax processus emendare

Productum dirigentes

Specification	L	L1	d1	d2	d3	T	Pondus
BT30XER16-70	118.4	70	28	16	28	M10-1.5P	0.55
BT30XER16-100	148.4	100	28	16	28	M10-1.5P	0.80
BT30XER16-120	168.4	120	28	16	28	M10-1.5P	0.95
BT30XER20-70	118.4	70	34	20	34	M12x1.75P	0.75
BT30XER20-100	148.4	100	34	20	34	M12x1.75P	0.75
BT30XER20-135	183.4	135	34	20	34	M12x1.75P	1.15
BT30XER25-70	118.4	70	42	25	42	M16x2.0P	0.70
BT30XER25-135	183.4	135	42	25	42	M16x2.0P	1.45
BT30XER32-70	118.4	70	50	32	45	M16x2. ON	0.85
BT30XER32-100	148.4	100	50	32	45	M16x2.0P	1.00
BT30XER40-80	128.4	80	63	40	53	M16x2.OP	1.10
BT40XER16-70	135.4	70	28	16	28	M10x1.5P	1.20
BT40XER16-100	165.4	100	28	16	28	M10x1.5P	1.30
BT40XER16-125	190.4	125	28	16	28	M10x1.5P	1.36
BT40XER16-150	215.4	150	28	16	28	M10x1.5P	1.54
BT40XER20-70	135.4	70	42	20	34	M12x1.75P	1.40
BT40XER20-100	170.4	100	42	20	34	M12x1.75P	1.50
BT40XER20-135	200.4	135	42	20	34	M12x1.75P	1.70
BT40XER20-150	215.4	150	42	20	34	M12x1.75P	1.80
BT40XER25-70	135.4	70	50	25	42	M16x2.OP	1.30
BT40XER25-90	155.4	90	50	25	42	M16x2.OP	1.50
BT40XER25-125	190.4	125	50	25	42	M16x2.OP	1.90
BT40XER25-150	215.4	150	50	25	42	M16x2.OP	2.25
BT40XER32-70	135.4	70	50	32	50	M16x2.OP	1.30
BT40XER32-100	165.4	100	50	32	50	M16x2.OP	1.70
BT40XER32-150	215.4	150	50	32	50	M16x2.OP	2.5
BT40XER40-80	145.4	80	63	40	63	M16x2.OP	1.50
BT40XER40-100	165.4	100	63	40	63	M16x2.OP	2.05
BT40XER40-120	185.4	120	63	40	63	M16x2.OP	2.50
BT40XER40-150	215.4	150	63	40	63	M16x2.OP	3.10
BT40XER50-85	145.4	85	78	50	59	M24x2.0P	1.70
BT40XER50-100	165.4	100	78	50	59	M24x2.0P	2.10
