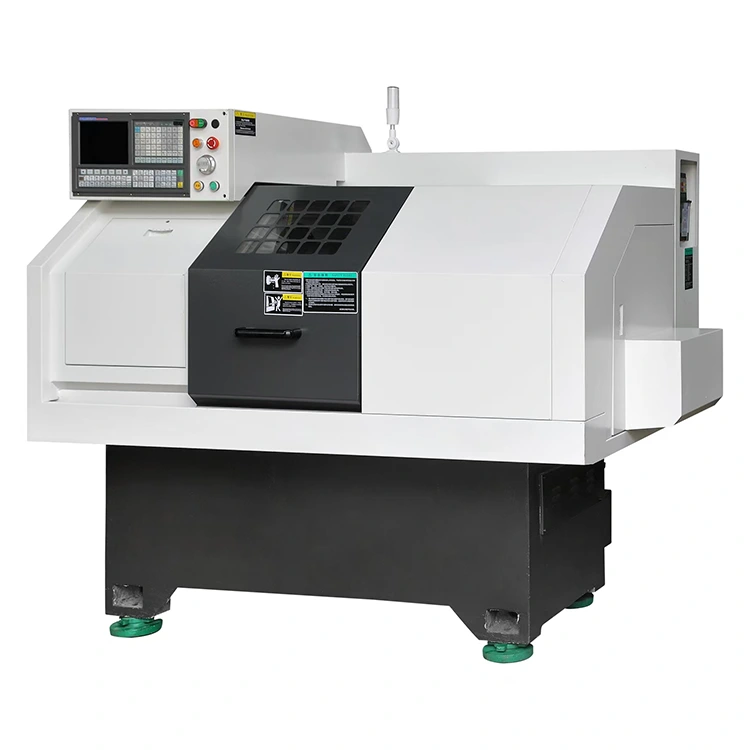

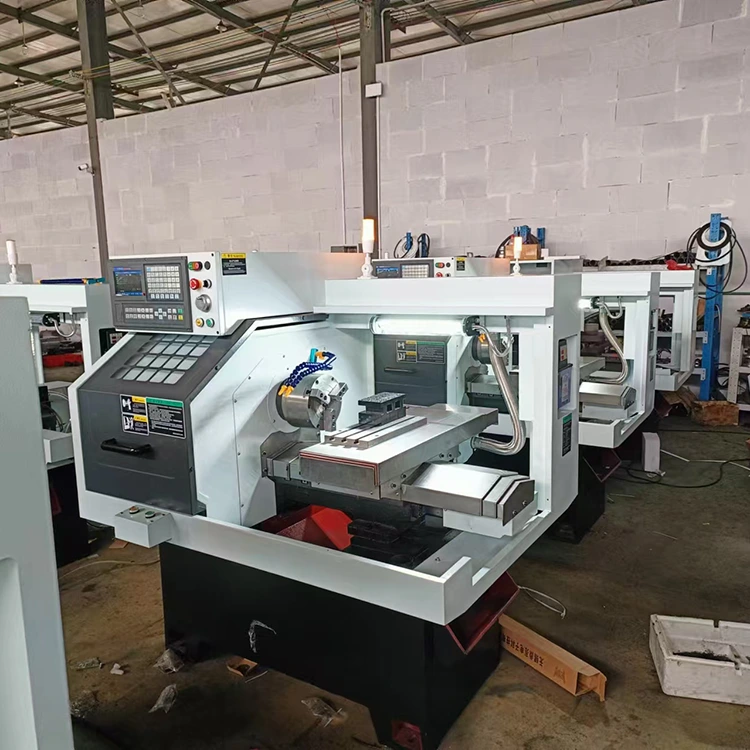

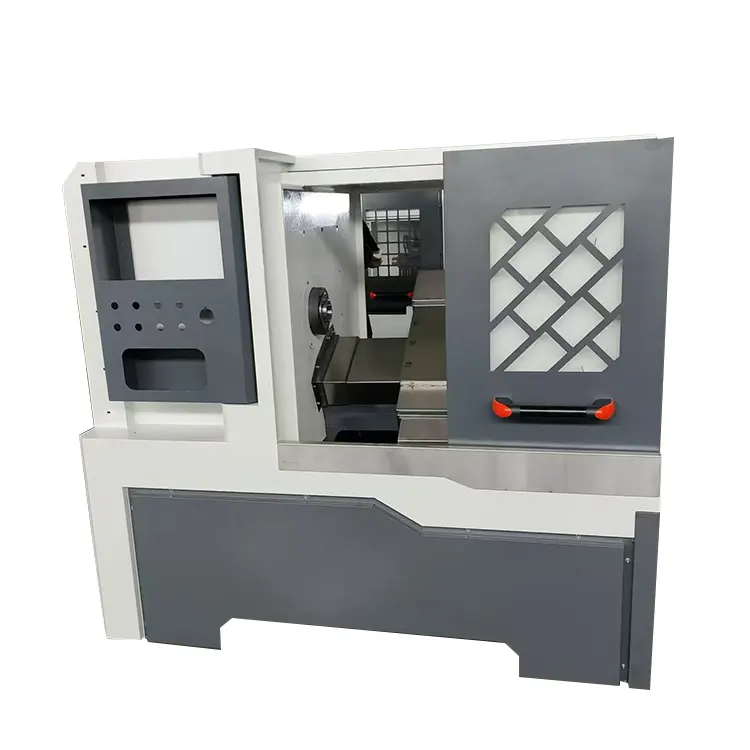

Truss Integrated Machine

Customer

Reza

Quotation No.

YL2025091101

Contactus

Reza

Quotation Date

2025-9-11

CC.

Locum validitatis

XXX diebus

Tel

Delivery Time

XX dies postquam obtinuit depositum

Pretium

DCXL (including volare dromonem virtutis caput et instrumentum Quadratum turriculam)

RMB42000SET

Payment

T/T.30% asdepositum, 70% praestatio ante tempus.

Warranty

Annus unus.


 Nomen

 Spec

Processus facultatem

Max adductius diametro supra lectum (mm)

280

Max adductius diametri super raeda (Φ/mm)

f160

Max vertens longitudinem Φ/mm）

280

Max diametrum Φ/mm）

280

Max per foramen diametri ad vectis Φ/mm）

42

Fusum

Fusum Nasum Type (GB 5900.1)

A2-5

 lychnus fusum tibicen foraminis

21°

GB21°

Fusum per foramen diameter（Φ/mm）

49

 Fusum drawbar per foramen diameter

41.5

Fusum drawbar filum

M48×1.5

Fusum celeritate range (r / min)

0-3000（4000）

Standard configurationis: 0-3000 (Libitum: 4000)

 Fusum calces shifting modus

32

Independent Spindle: 3 Front, 2 Tergo

Main Motor Power (Continuous Rating) (kW)

4

Motor principalis virtus (Instantaneous maximum valorem) (kW)

4

X-Axis Celeri Traverse Mobilitate (m/min)

15

Z-Axis Celeri Traverse Mobilitate (m/min)

15

X-Axis Servo Motor Torque (N·m)

110/6.4

Z-Axis Servo Motor Torque (N·m)

110/6.4

X-Axis plaga (mm)

640

Z-axis plaga (mm)

280

X-Axis & Z-Axis Motor Connection Method

 Direct Coupling

Z-axis guideway

Z-30-640

Z-axis pila cochlea 30-640 Quadratum genus

X-Postquam.

X-30-540

X axis pila cochlea 30-540 quadratum genus

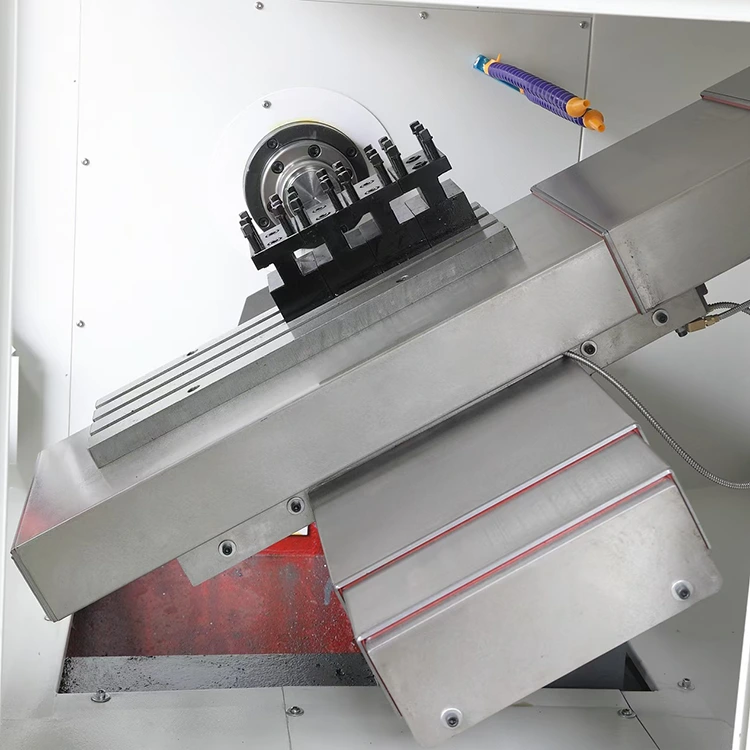

 Genus guideway

30FZS）

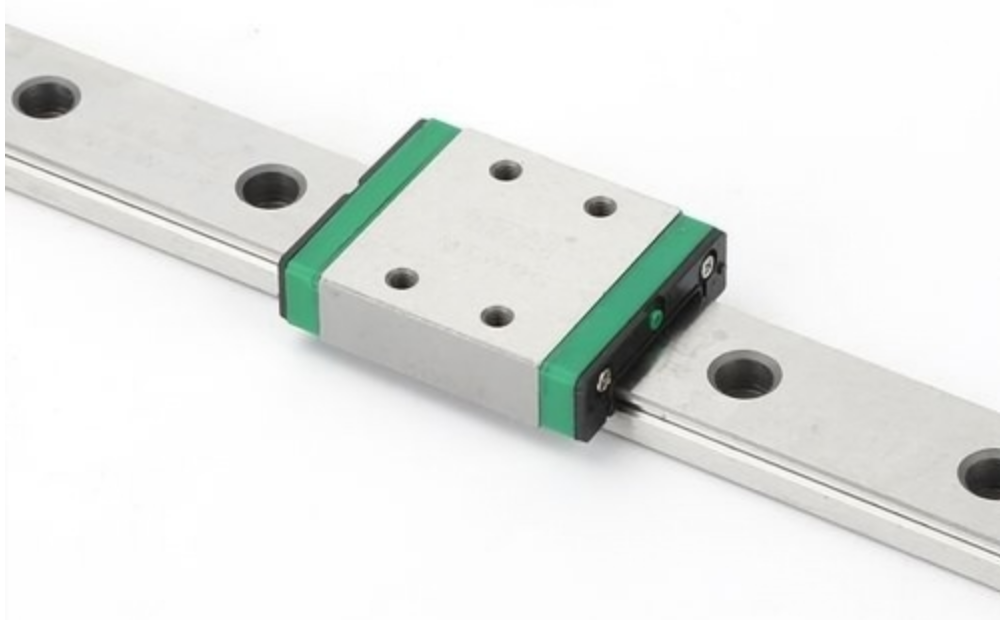

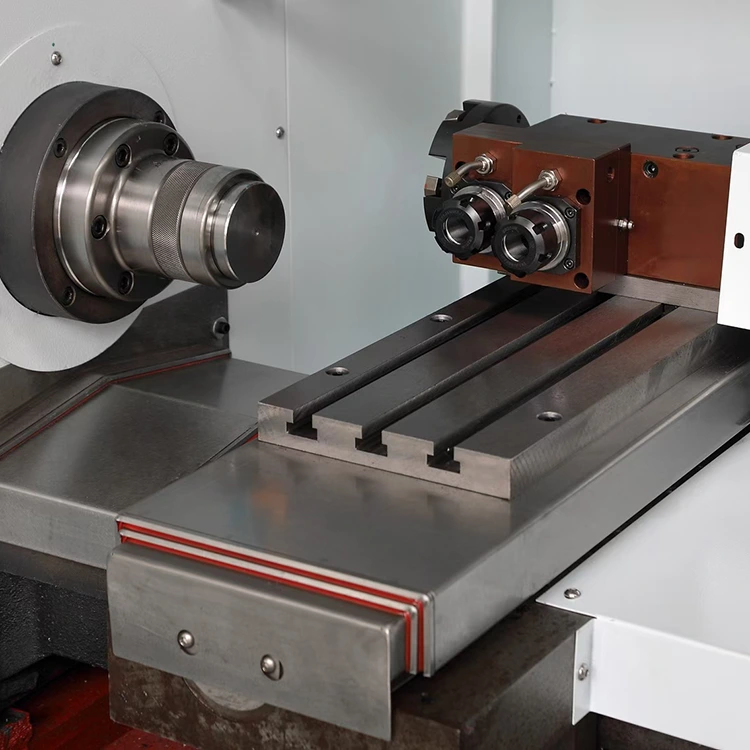

Linearibus guideway (30FZS)

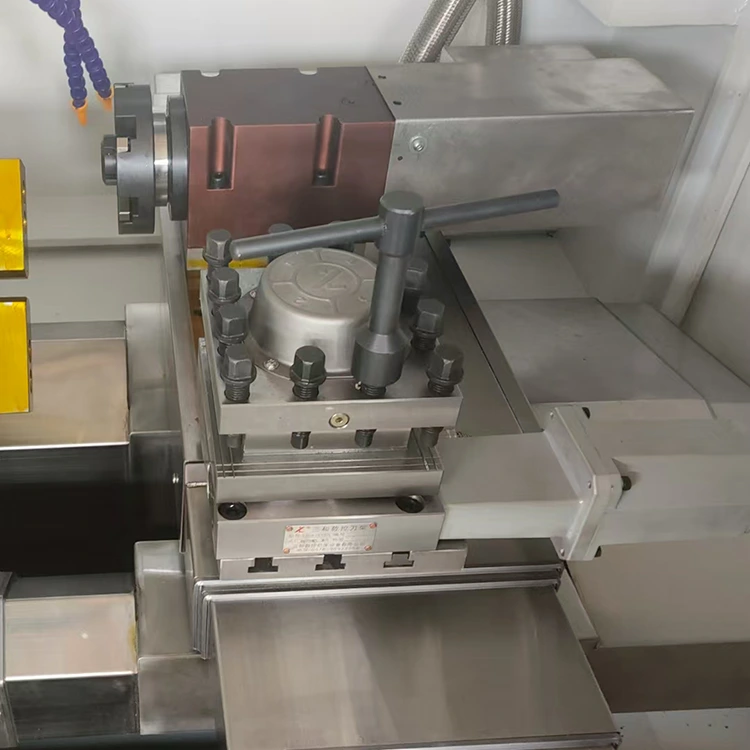

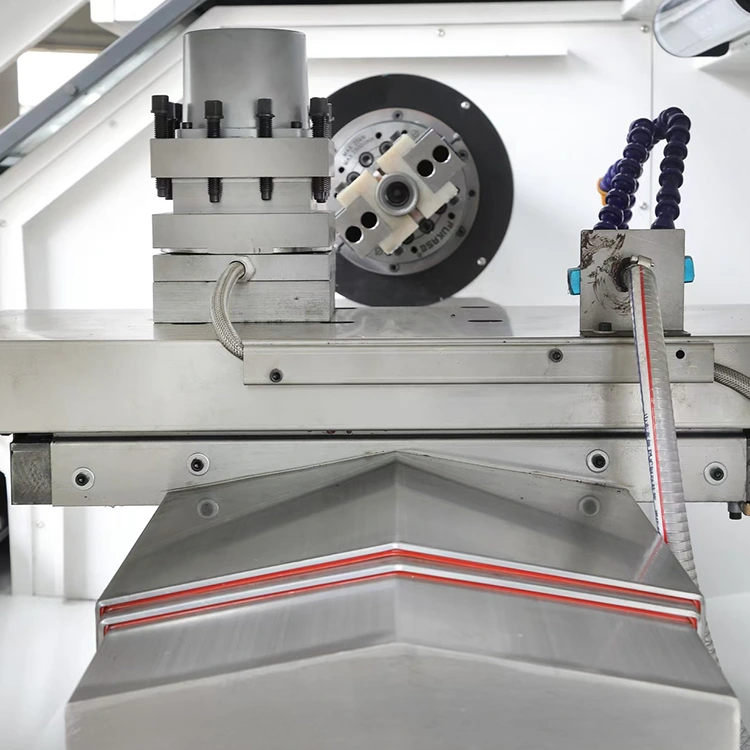

Instrumentum turris

 Instrumentum Turret Type

6125

 Numerus tool Stationum

MM）

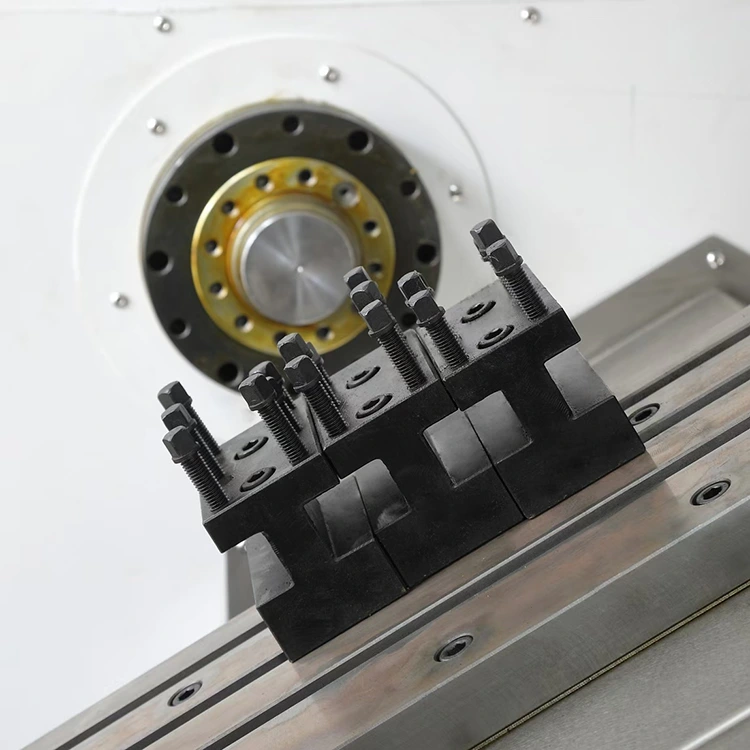

Instrumentum magnitudine (mm)

20*20

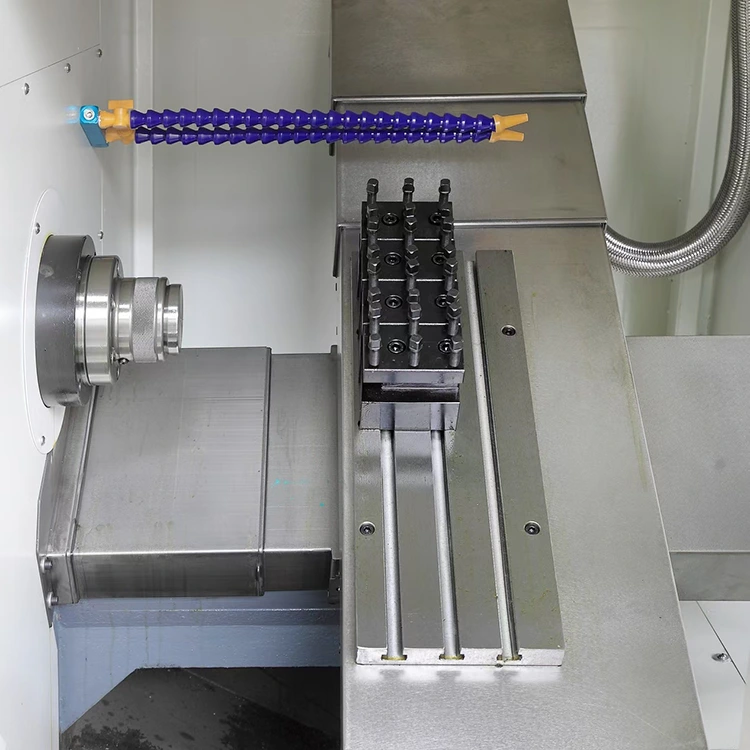

Fixum Instrumentum Post (20×20)

Truss

X-axis vexillum plaga

2400mm

X-Axis MaxSpeed

1.5mm/s

Y-axis vexillum plaga

650mm

Y-axis Max celeritate

1m/s

Z-axis vexillum plaga

1000mm

Z-axis Max celeritate

1.5m/s

 Ipsumque altitudinem terrae

1100mm

 Tray magnitudine

550* 350mm

 Numerus scutariorum

2

2 pics

 Truss materiales

chalybe

 Finis gripper

，

Clamatio pneumatica   pneumatica gyrationis

 Modus tradendi

Linearibus guideway inclinato blasphemant eculeo

 Input voltage

220V

 Initus caeli pressura

0.5-0.8 pa

Potentia copia

 Rated potentia summa

9KW

 Totalis current rated

20A

Spec

 Apparatus pondus

900kg

Apparatus mole（L×W×H）

1650×1250×1600mm

alius

 Modus clamping

Chuck diam (libitum)

 Aqua sentinam potentia

380V/90w

Exemplar pila cochlea (X-axis)

2508

Exemplar pila cochlea (z-axis)

3208

Chip TRADUCTOR genus (libitum emptio)

Machinign  field

 Auto motorcycle partes et hardware accessiones
