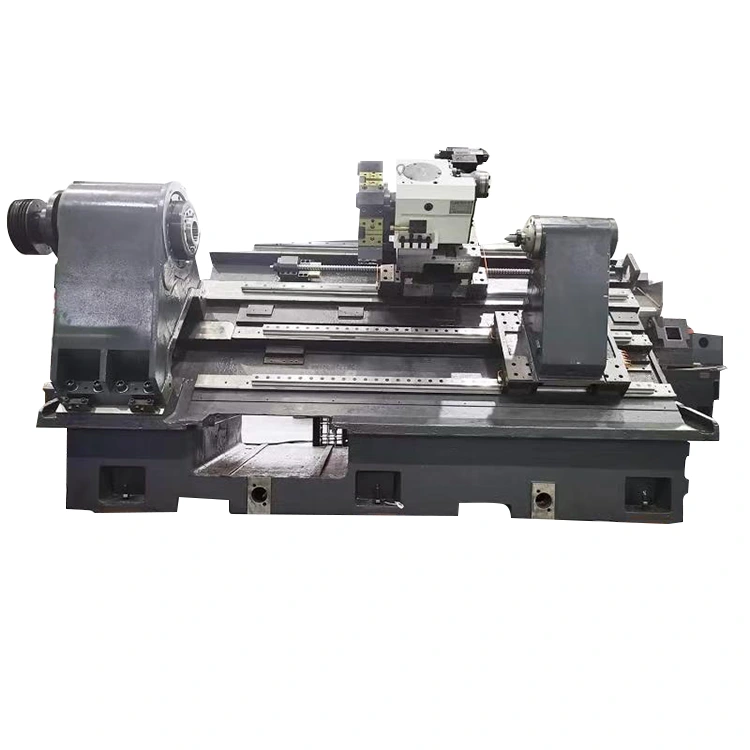

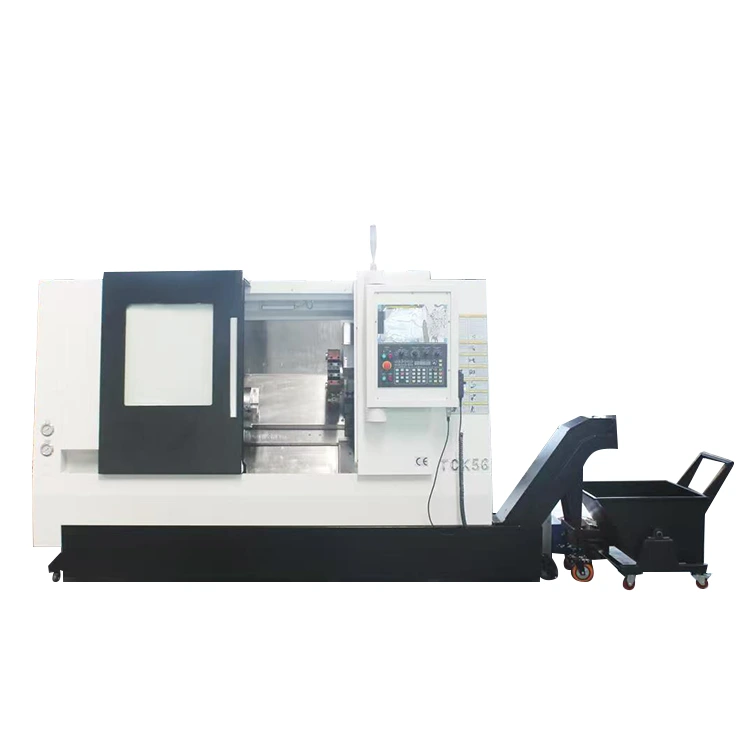

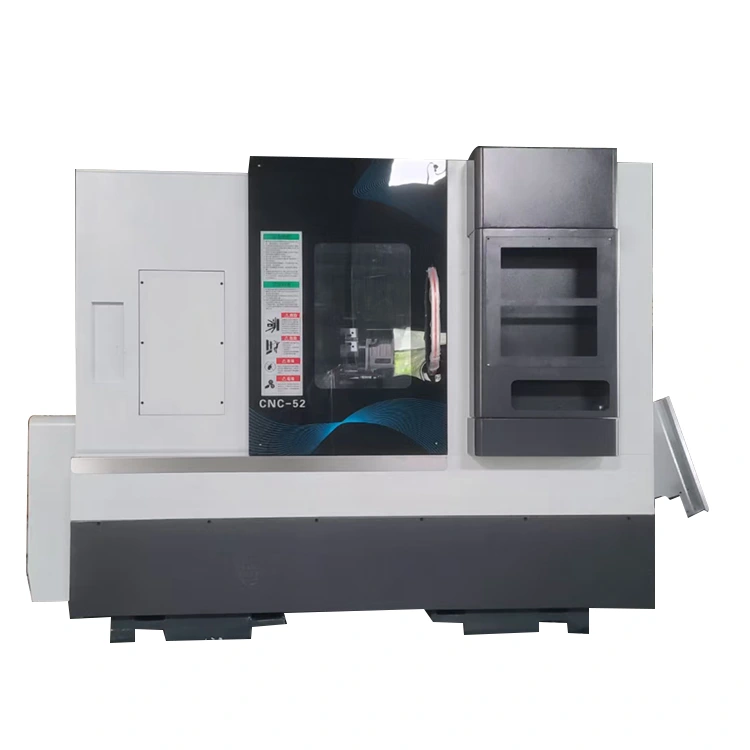

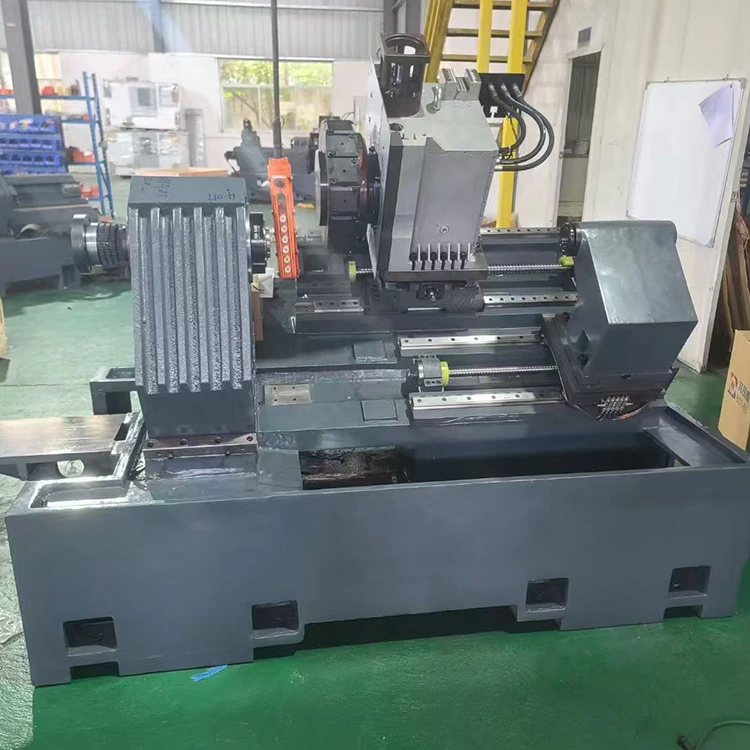

CNC Turn-Mill Centrum cum Tailstock

NO.NomenUnitasSpecAnimadverte1Slide Table Top Dimensionmm450*340 2Max peregrinatione z axismm600 3Max peregrinatione de X axismm300 4Max adductius diametromm650 5Diatance from fusum est labi in mensa summomm170 6Procul a centro ad terram fusummm1100 7MAX maching longitudomm475Turris potentiam in exe......

Model:YL-52Y

Mitte Inquisitionem

depictio producti

NO.	Nomen	Unitas	Spec	Animadverte
1	Slide Table Top Dimension	mm	450*340
2	Max peregrinatione z axis	mm	600
3	Max peregrinatione de X axis	mm	300
4	Max adductius diametro	mm	650
5	Diatance from fusum est labi in mensa summo	mm	170
6	Procul a centro ad terram fusum	mm	1100
7	MAX maching longitudo	mm	475	Turris potentiam in exemplum ponens NF80-170-BMT55-12T
8	MAX diametri flexus	mm	500	Turris potentiam in exemplum ponens NF80-170-BMT55-12T
9	Modle fusum (fusum diam)	mm	A2-6（200）
10	Fusum celeritas	RPM	0-4000
11	X、Z pila stupra specificationes		3210/4010	Iaponica THK pila cochlea, Classis C3
12	X-axis linearibus dux rail		Taiwan HIWIN cylindro clss p, Size 35	IV-vexillum genus iunctae
13	Z-axis linearibus dux rail		Taiwan HIWIN cylindro clss p mole 35	IV Sliders -Extended-Longitudo Sliders
14	Connexio methodus motoris principalis X.Z		Leo balteum / coegi Direct / coegi Direct
15	X.Z. Tailstock Motor Flange / Spigot	mm	130/110
16	Apparatus magnitudine	mm	241512571270
17	Machina rete pondus	KG	3800kg	Cum interiore et tutela externa

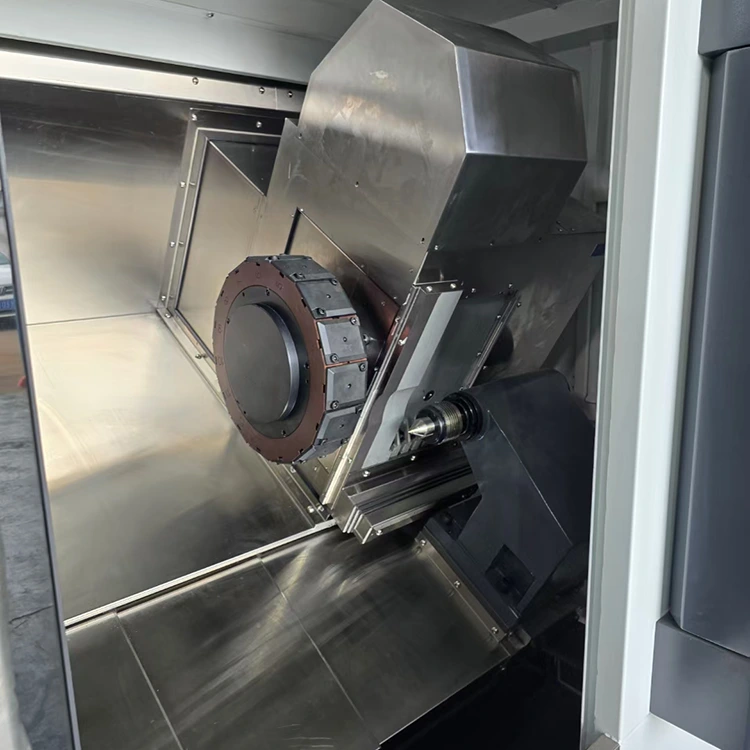

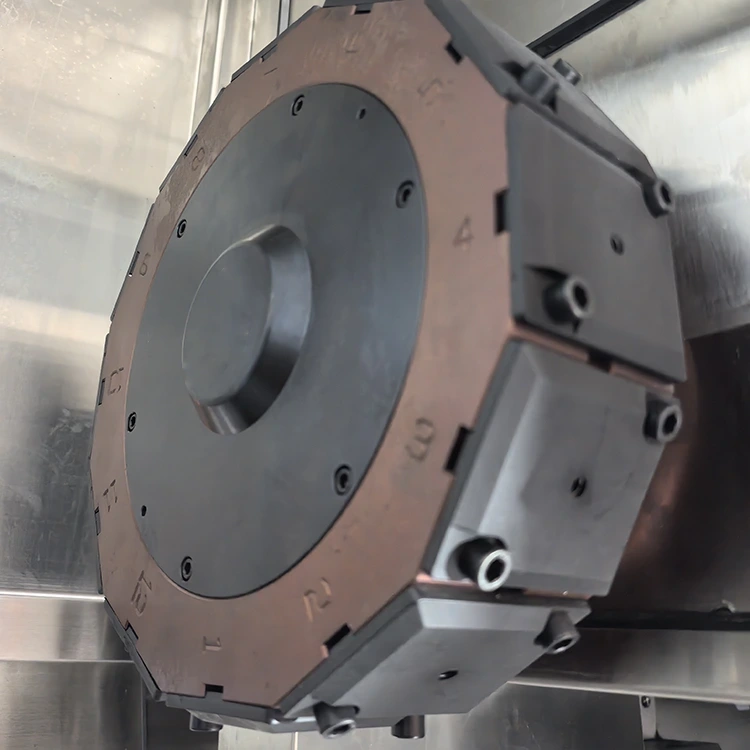

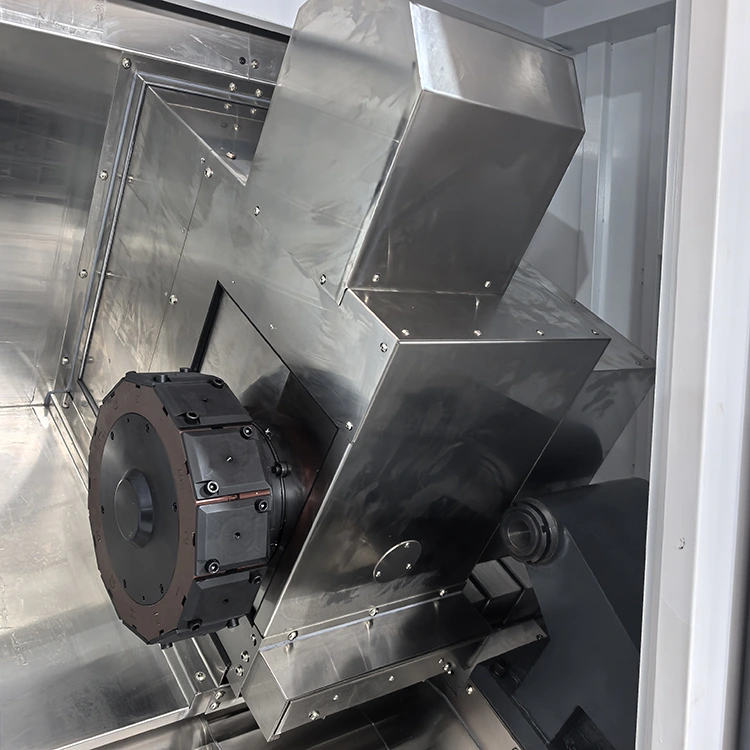

18	Instrumentum institutionem modum		170-BMT55 potentia turris
19	Machina basis generis et inclinationis		XXX-gradus obliquus
20	Tailstock		Linearibus dux tailstock
21	Tailstock progrediendi modum		Propulsio Hydraulica et servo propulsio	Vexillum instructus hydrau Tailstock Center
22	Max peregrinatione de tailstock		600
23	Min proiectura longitudinis tailstock		30mm
24	Tailstock centrum exemplar		MT5

Exemplar configuratione
Nomen	Locum rigin / Spec	Nomen	Locum originis / Spec
CNC Systema	TUSSIS	X/Z-axis servo motorum+ Drives	Delta
32 Subsecutio Ball Screw	THK(Japan)	Fusum motricium	Huahong 7.5KW
30 Subtilitas Linear Rollerus Guideway	HIWIN (Taiwan, China)	Cylindrus hydrau gyratorius	TAIWAN
Cylindrica Precision Spindle Unit	NSK Bearings (Japan)	frigus	750W
HYDRAULICUS station	Taiwan	Potestas Capitis	3 stationes 11.4N
Random Accessories
Nomen	Exemplar / Spec	Nomen	Exemplar /spec
Collet (nam materia clamping)	I quam at pede (constructa machina	Conversus instrumentum post EXERCITATIO instrumentum post	3PCS/2PCS
Instrumentum EXERCITATIO scapus	2 Pcs of ER20A Extensio Rods	Hex key	1Set
